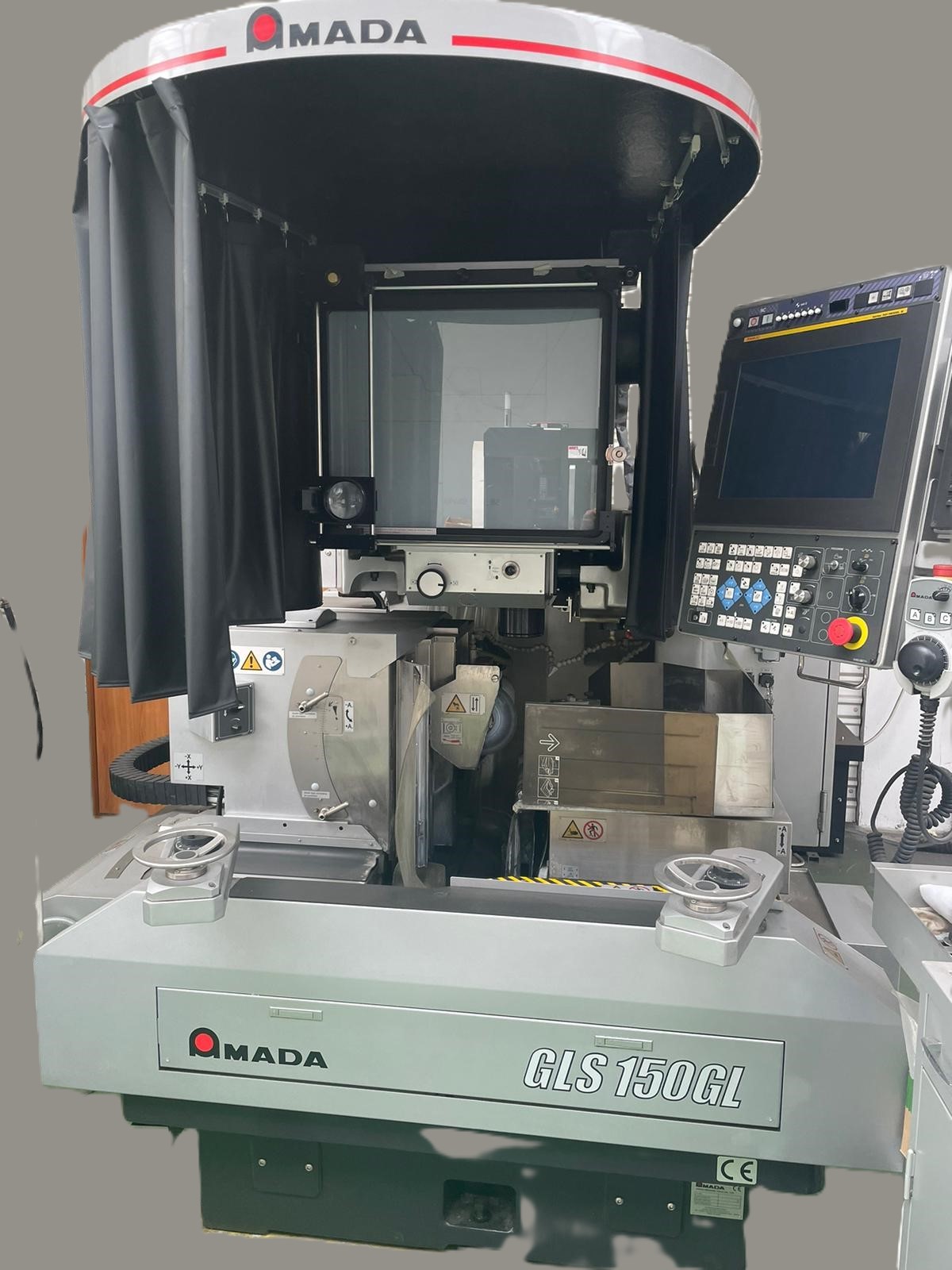

AMADA OPTICAL PROFILE GRINDER CNC 150 GL LED

GLS-150-LED ALL AXIS NC CONTROLED Optical Profile Grinding Machine for Wet and Dry Machining
DISPLAY MACHINE (demonstration machine) Contour accuracies of 1 μm, CNC-controlled, and with up to 5-axis interpolation.
The teach-in-playback method even compensates for grinding wheel wear.
Grinding in automatic, semi-automatic or manual mode.

High-accuracy projector can be switched to X 20 and X50 enlargement, ready for magnification X 100, no need to change working component

Control System F-32i-GT

OPG-SSW Standard software

Interactive macros for creating a complete work cycle, comprehensive operating software

  LTZ Running time and parts counter  Fanuc function for the last 10 programs used

  ISO ISO Code Programming Program generation by using ISO code TEACH-IN Teach-In Playback

 WE Radii And Angle Interpolation Ease programming of free contours. Different geometries as line, angle, radii can be put together using teaching function

  TR1 Transformer 20 kVA Transformer MKDG20, (3×380-400-415V/3x200V) (grey)

   SK-OE1 Spindle Chiller                                          Cooling aggregates for grinding spindles

  SP-L Air Dehumidification Unit Incl. air-oil unit

 STANDARD ACCESSORY

1 Z-WZ Tools For Grinding Wheel Setup

Version V. Linear Seamless Table Autoreliefangle CCD

 Package included:

-CNC interpolated swivel axis head

-linear stroke, programmable (head)

-Radial / axial axis (head) controlled

-Additional axis controlled stroke (table)

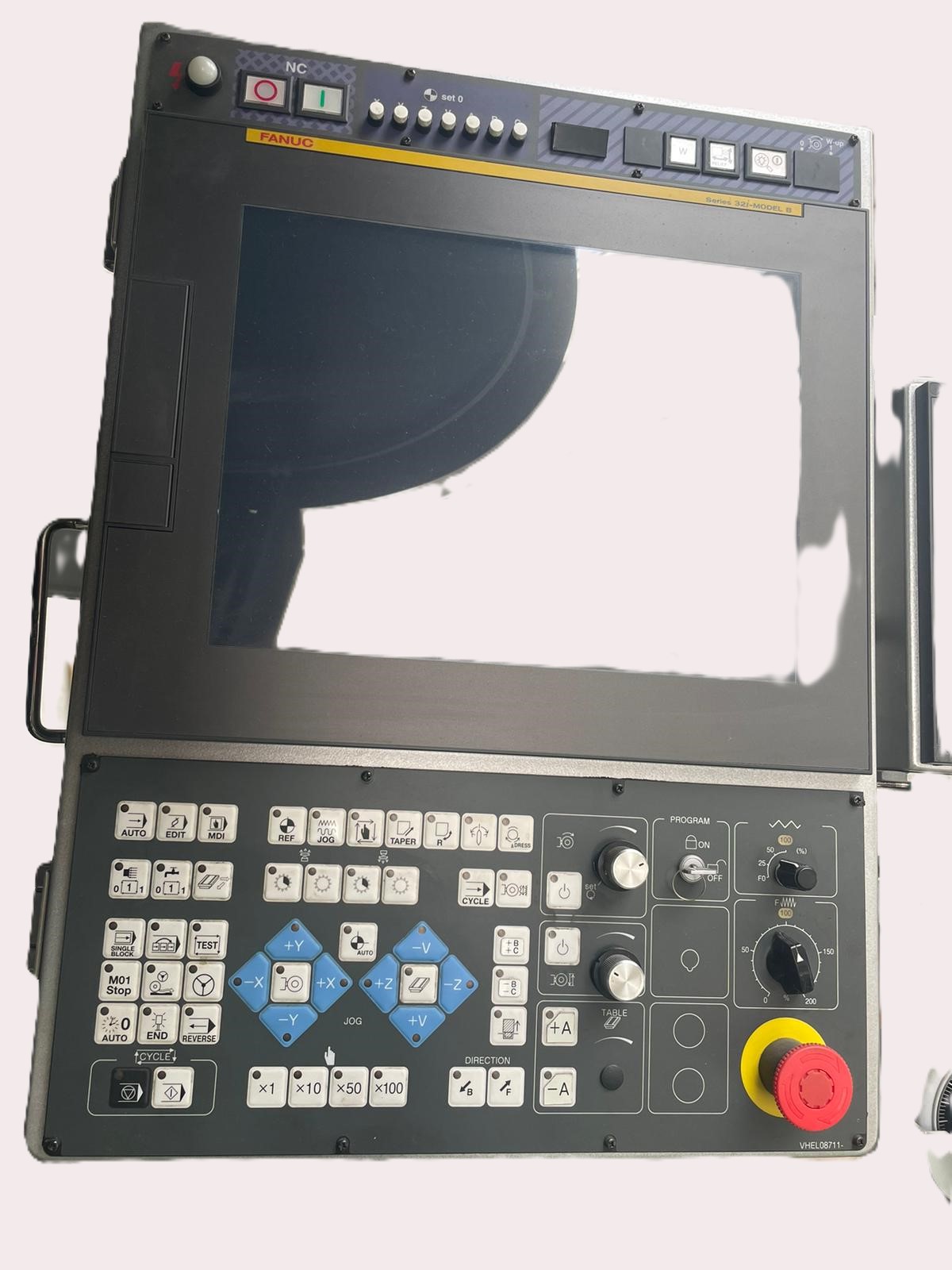

-Control and extended control panel

-CCD camera measuring system

-Software package

-external contour programming

CNC swivel head:

-Seamless contour grinding with CNC interpolated grinding head, swiveling in the process.

-Programmable swivel angle, minimizes collisions (grinding wheel to workpiece) in automatic machining, Incl.

-CNC grinding head swivel function

-3-axis synchronous movement for automatic 0-point centering

-macro

-Manages up to 5 grinding wheels

-Swivel angle +/-15°

Linear stroke (head):

-Spindle stroke with linear motor, spindle position

-(Grinding wheel) programmable including software

NC controlled head axes

-Axial clearance angle

-Radial clearance angle

Table (hub)

-Controlled and programmable table stroke

-Including software table teach in function

 Extended control panel

-15 „touchscreen with additional keyboard (Control),

Windows operating system

CCD cameras

-Show CAD contour (DXF)

-Enlarges the display of the projector image up to 1,000 times

-Enlarges the representation on the optical magnifying glass along the contour up to 1,000 times

-Difference measurement of the CAD contour to the workpiece after axis movement

– including software

WinWop contour programming

-Contour programming software

Windows-based program for creating free geometries or importing from external CAD programs.

• grinding simulation
• Compensation of profile distortions -Clearance angle
• Consideration of shrinkage on workpiece

-Adoption of value tables

-Takeover and further processing of CAD

-Data in DXF format

-Pre and finish grinding with residual geometry detection (clearing-smoothing)

-external programming station

-Version optical profile grinding incl. dongle, post processor

OPTIONS at additional costs:

• Grinding wheels – flanges 10 pieces
• Grinder Crusher
• Grinding Rotary Attachment D-100
• ABC Indexer for indexing rotary axis
